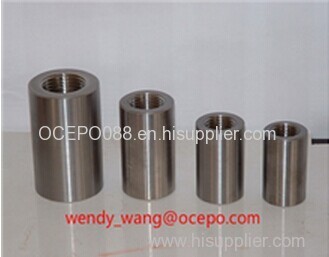

parallel thread rebar coupler manufacturer from China Beijing Construction Machinery Ltd.

Payment Terms:	T/T,L/C
Place of Origin:	Beijing, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Packing: Plywood Case

Brand Name: OCEPO

Delivery Date: Within 8 hours

We could manufacture specially according to clients' requirement.

Product Description
Roll thread not cut thread, so could protect the highest tensile strength of parent metal. It meets requirements in JGJ107, ACI318, BS8110, DIN1045 and UBC1997 etc.

Product Feature
1. Roll thread not cut thread, so could protect the highest tensile strength of parent metal. It meets requirements in JGJ107, ACI318, BS8110, DIN1045 and UBC1997 etc.

2. Easy to operate. Automatic opening-closing mechanism for rib peeling device, need only 30 seconds to finish a threaded end.

3. Peel ribs and roll threads by the same machine, so could save labor and improve productivity.

4. Widely used. Be able to process rebar diameter 16-40mm

5. Environment-friendly, safe, no environment and weather restrictions.

6. Economic, low investment for the equipment

Specification

Size	Specification		Net Weight (kg)	Thread Pitch (mm)	Thread Angle
Size	Outer Diameter(mm)	Length (mm)	Net Weight (kg)	Thread Pitch (mm)	Thread Angle
Φ16	Φ24.0	43	0.0936	2.5	75°/ 60°
Φ18	Φ27.0	47	0.1286	2.5	75°/ 60°
Φ20	Φ31.0	52	0.1938	2.5	75°/ 60°
Φ22	Φ33.0	57	0.2296	2.5	75°/ 60°
Φ25	Φ37.0	63	0.3106	3	75°/ 60°
Φ28	Φ41.0	68	0.4024	3	75°/ 60°
Φ32	Φ47.0	76	0.5979	3	75°/ 60°
Φ36	Φ54.0	84	0.8854	3	75°/ 60°
Φ40	Φ59.0	90	1.1500	3	75°/ 60°
